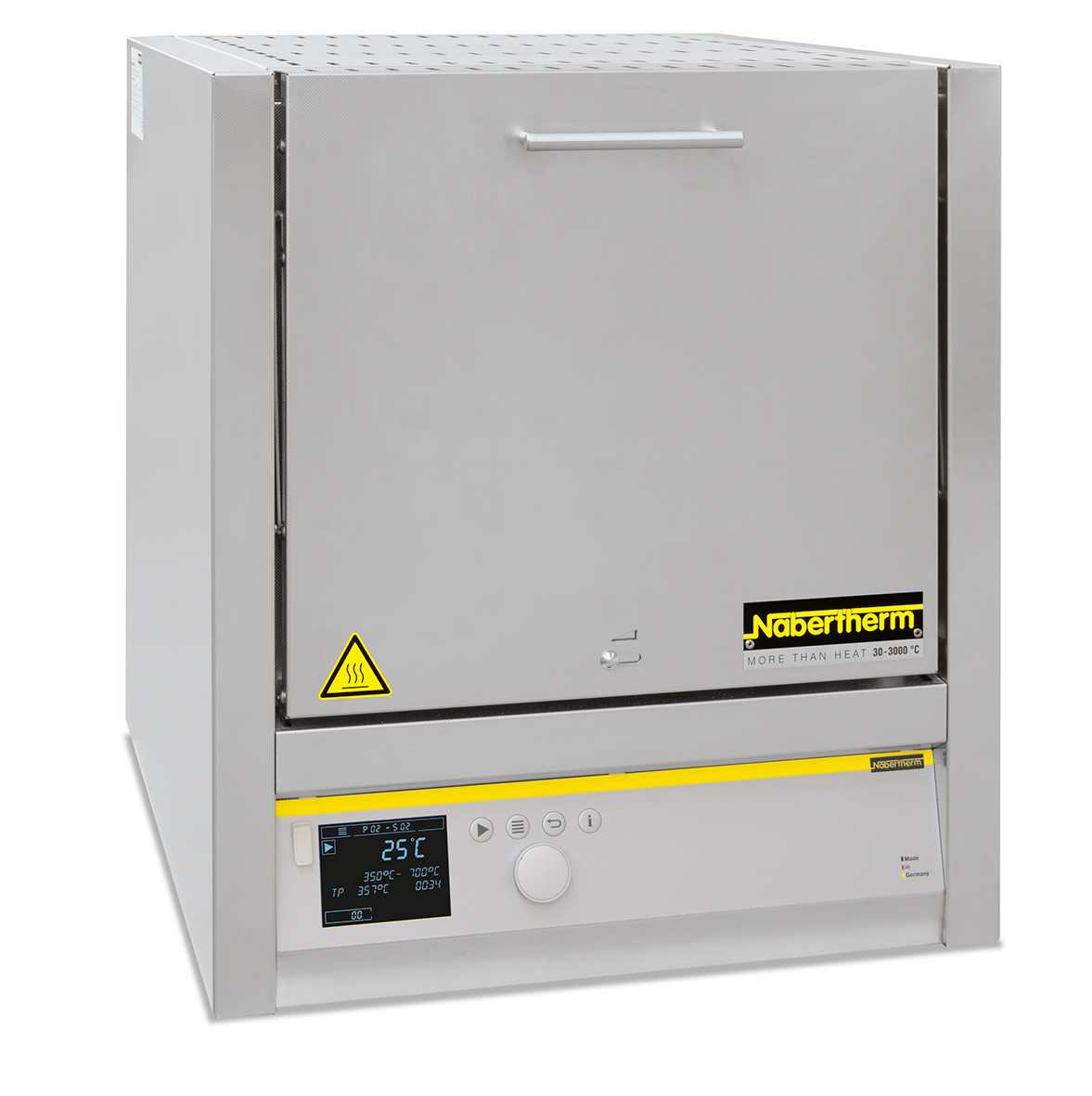

Muffle Furnaces up to 1100°C or 1200°C

The muffle furnaces L 3/11 – LT 60/12 have been proven for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The muffle furnaces come equipped with either a flap door or lift door at no extra charge.

หมวดหมู่: ป้ายกำกับ: , , , , , Brand:

คำอธิบาย



Features :

  • Tmax 1100°C or 1200°C
  • Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 – LT 60/12) for an optimal temperature uniformity
  • Temperature uniformity of +/− 5 K with closed fresh-air inlet in empty workspace according to DIN 17052-1 at working temperatures above 800°C
  • Thermocouple type N (1100°C) or type S (1200°C)
  • Ceramic heating plates with integral heating element which is safeguarded and easy to replace
  • Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
  • Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
  • Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP).
    This explicitly means that alumino silicate wool, also known as “Refractory Ceramic Fiber” (RCF), which is classified and possibly carcinogenic, is not used.
  • Adjustable air inlet integrated in door
  • Exhaust air outlet in rear wall of furnace
  • Controller with touch operation B510 (5 programs with each 4 segments) resp. controller R8 for L 1/12 (adjustable for one temperature)

Nabertherm, Germany



Download Catalog
